Overview

Updated 11/18/2021



These links are being provided as a convenience and for informational purposes only; they do not constitute an endorsement or an approval by [The author] of any of the products, services or opinions of the corporation or organization or individual. [The author] bears no responsibility for the accuracy, legality or content of the external site or for that of subsequent links. Contact the external site for answers to questions regarding its content.



Peoplenet, a workforce time entry and time management solution, integrates with the Avionté application.



Notes	Contact your Avionte SAE to begin the integration process. A license will be installed on the Avionté side to enable Peoplenet.
	The optimal integration is available in versions 15.1.6 and newer.
	The PeopleNet integration is only available in Avionté CLASSIC. It is not a current integration available with BOLD.
	Peoplenet terms must be mapped into the Avionté system. Terms like "Regular," "Overtime," and "Doubletime" must be mapped to Avionte's terms like "Reg" instead of "Regular."





Setup

The Peoplenet integration setup is comprised of four parts - Peoplenet Subscription, Integration Configuration, Import/Export Configuration, and User Authorization.



Back to Top





Peoplenet Subscription

Avionté customers interested in using Peoplenet for time tracking must contact Peoplenet directly to sign up for services and obtain an integration key. http://www.peoplenet.com/contact-us/

Contact your Avionté representative with the Peoplenet integration key. This is key is used to license your integration with the Avionté application.



Back to Top





Integration Configuration

After obtaining credentials from Peoplenet, the Avionté application must be configured to communicate with the Peoplenet account.

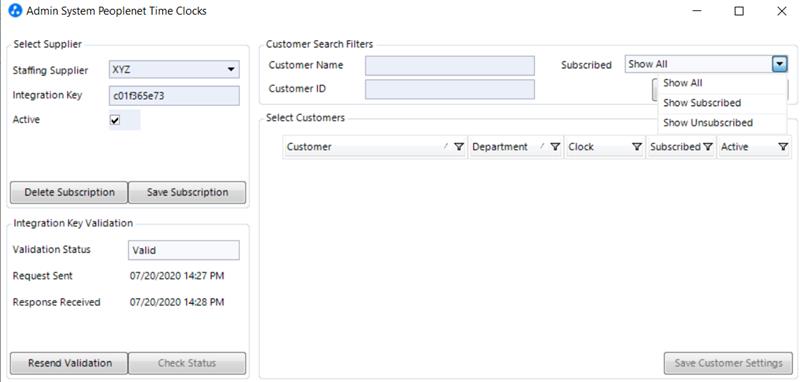

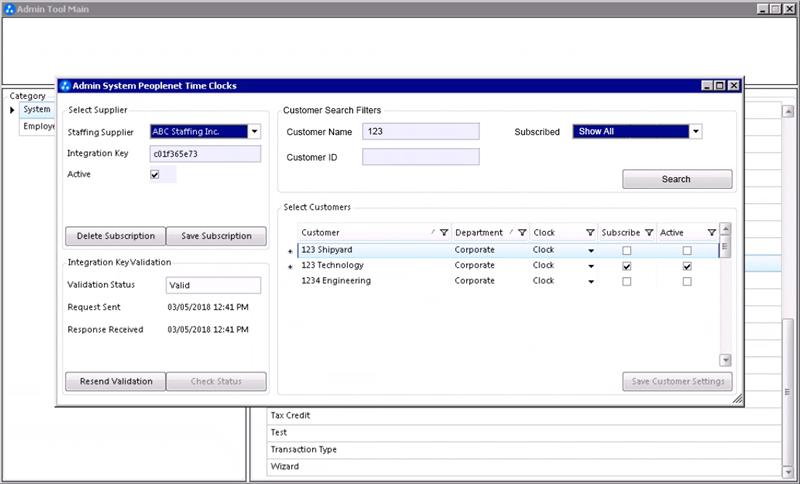

In the Admin Tools > Peoplenet Time Clocks screen, we've added search fields to reduce the amount of time it takes for the screen to load and to assist you with finding the exact customer or department you need to subscribe to the integration.



Once a Staffing Supplier is selected, you will be able to search for your customer(s) by customer name or customer ID.  You can also use the Subscribed dropdown to find all customers who are currently subscribed, those that aren't subscribed, or all.

When searching by Customer Name, the results will display the parent customer and its' associated departments.

When searching by Customer ID, the results will display the searched customer and its' associated departments.

1. From the Start Page, navigate to Actions > Admin Tools > Peoplenet Time Clocks.


2. Select the desired Staffing Supplier from the drop-down menu.



   If you wish to filter the view by Subscription Status, you can do that as well.




3. Enter the integration key provided by Peoplenet.
• Avionte customers must contact Peoplenet directly to sign up for services and obtain an integration key. The integration key is used to license the integration with the Avionté application.
• http://www.peoplenet.com/contact-us/
4. Check the checkbox to indicate the subscription is Active.


5. Click Save Subscription.
• The key is now sent to Peoplenet for verification. A validation status and time stamp will appear in the Integration Key Validation section.


6. Click Check Status to update the validation status for the current integration key. The possible returned results are listed below. If a Valid or Invalid response is received, a time stamp will display next to Response Received.

   • Note: To enter a new key when a valid integration key has been sent, a user must delete the subscription before entering a new integration key.
• Pending: Peoplenet has not processed the integration key.
• Valid: The integration key entered is a valid key with Peoplenet.
• Invalid: The integration key entered is not an active integration key.
• Note: Review and edit the entered key to ensure it is correct. Click Resend Validation to resend the key to Peoplenet.


7. Define the customers using Peoplenet for time entry in the Select Customers section.
   Note: Each customer must be activated at the "corporate" level as well as the "department" level.
• Some customers feature departments. Click the small plus sign to the left of a customer to display departments. Changes made on a customer level will not apply to departments unless confirmed in the pop-up dialogue.
• Note: The customers displayed are based on a user's branch settings.
• In the Clock column, select what type of time clock the customer is using.
• Note: The clock type set here is the default clock type for the customer's orders.
• In the Subscribed column, click the box if the customer is subscribed to Peoplenet.
• In the Active column, click the box if the customer is actively using Peoplenet.
8. Click Save Customer Settings to save the settings.



Back to Top





Import Mapping Configuration

This action only needs to be taken at the onset of the Peoplenet integration. Edits can be made to terms at any time, however, ongoing changes do not need to be made.



To transfer data precisely, the payroll terms used in your system must be mapped to match Peoplenet terms. If Peoplenet uses the term "Regular" to describe "regular hours" and your system uses the term "Reg", the terms must be associated (mapped) to ensure accurate importing.

1. Navigate to Start Page > Actions menu > Admin Tools

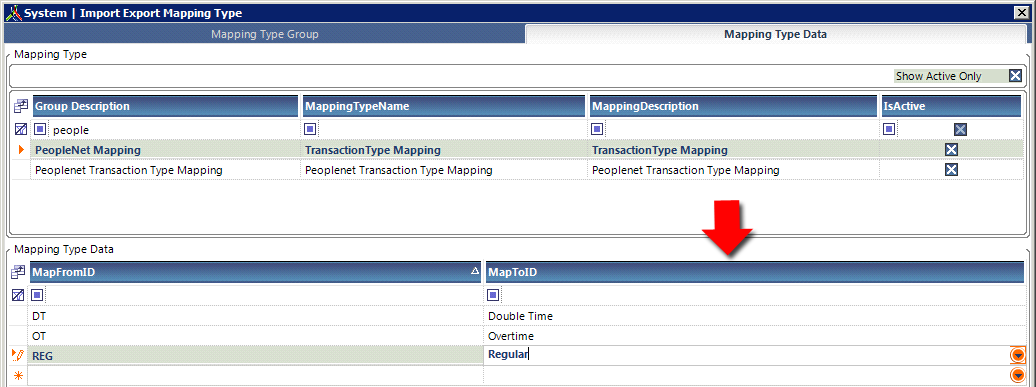

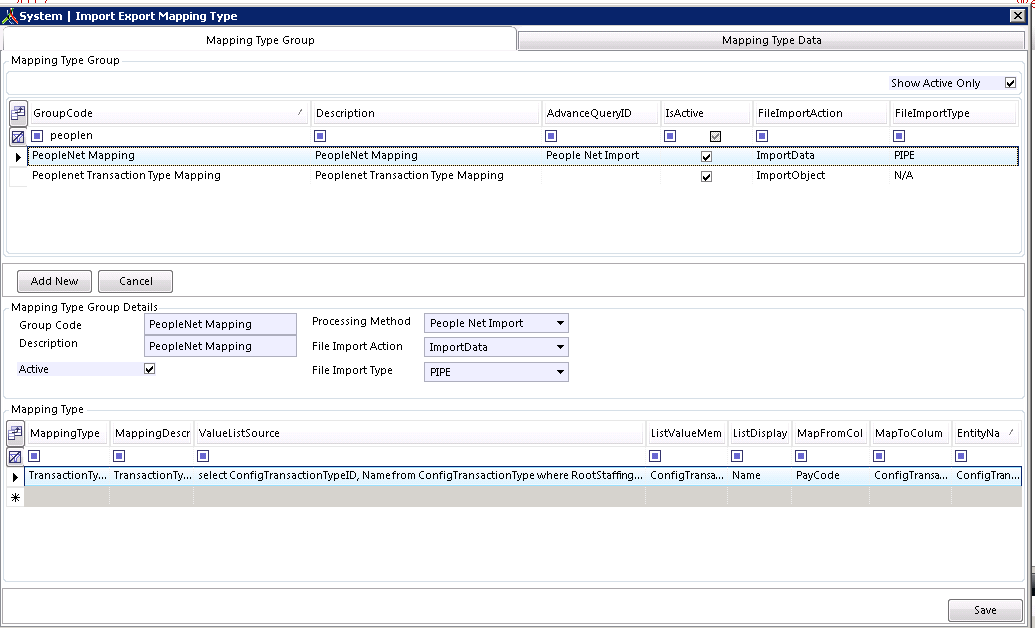

2. Select Import Export Mapping. The System | Import Export Mapping Type window displays.




3. Click the Mapping Type Data tab.




4. In the GroupCode column, search for 'Peoplenet'. Any Peoplenet-related mapping imports will display in the grid.


5. Click the Peoplenet Mapping row. The Mapping Type transactions area shows the Peoplenet terms in the MapFromID column.




6. Enter your company's terms in the corresponding row of the MapToID column.




7. Click Save. The Peoplenet data will now match your company's data during an import.



Back to Top





User Authorization

Avionté users must be granted permission to use the Peoplenet import tool.

1. Navigate to Start Page > Actions menu > Admin Tools > Category = System


2. Select Report.


3. Open the Advance Query tab.


4. Type the name of the targeted report in the Title column to search for the report by name.





5. Click the row of the advanced query to which users will receive authorization.





6. In the Report Users section, select "User" or "Group."





7. Place a check mark next to the user or group that will have authorization.




8. Click Save.


9. A "Save Complete" confirmation pop-up displays. Click OK. The report is now available to the selected user or group. A user may have to restart the application to view the newly available report.



Back to Top





Usage



Importing

Before Peoplenet data can be used, it must be imported from Peoplenet into the Avionté application.

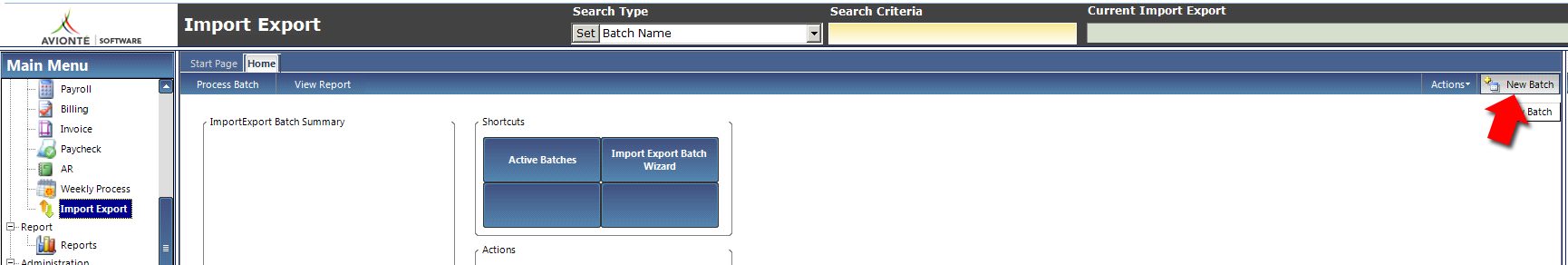

1. Navigate to Back Office > Import Export.


2. Click New Batch.





3. Enter a description for the batch run.

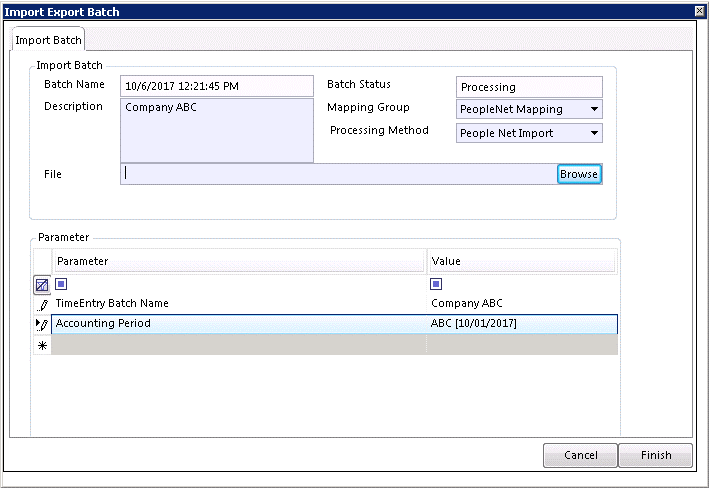

4. Select the Mapping Group "Peoplenet Mapping”. The Processing Method will automatically be set to “People Net Import”.

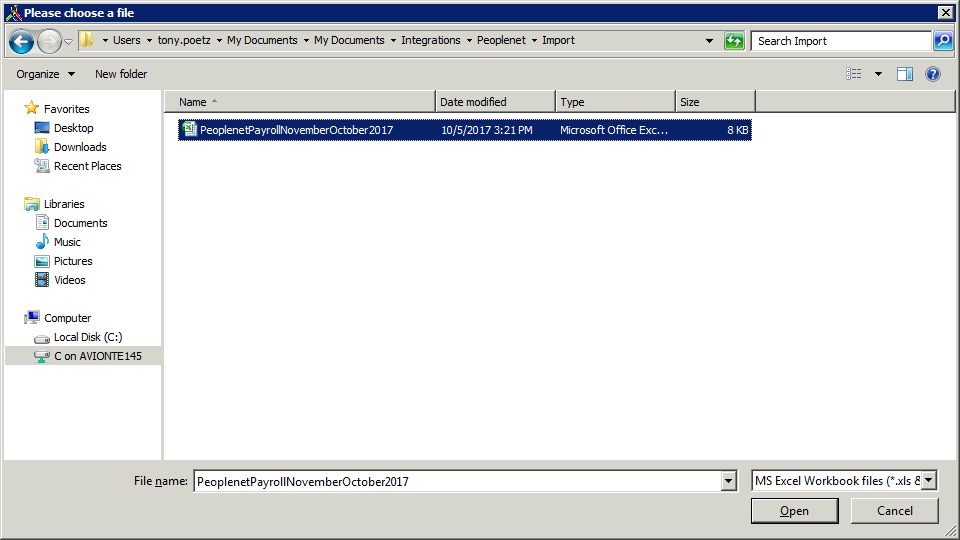

5. Browse for the file you have on your computer that you are going to be importing.


   • Select the file type from the drop-down menu in the lower-right.





6. The parameters are Time Entry Batch Name which is a free text field, and then Accounting Period which is a dropdown and will show you your open accounting periods to choose from.


7. Click Finish.The ImportExport Home page displays.


8. Click “Process Import Export Batch”. If there were any errors during the import, a grid will pop up showing all the lines from the import file, and any lines with errors will have a plus sign at the far left of the row.  Expand out the plus sign to see the error.

• Note: Nothing will be imported until the file is 100% error free.


• If there are any errors, resolve them in Avionte or on the import file, then try the import again. If any changes have been made to the file itself, the import batch may have to be discarded and a new batch may have to be imported.
• Common errors:


  • Invalid or Missing Mapping: Map this transaction type in Admin Tools > Import Export Mapping on the Mapping Type Data, then reprocess the file.
• If the file import ran successfully, a "Successful" message will display and the import export batch will automatically be closed.

Newly created assignments belonging to subscribed customers will be sent to Peoplenet automatically via a nightly service.  Any updates to assignments are sent to Peoplenet automatically via a refresh service that is run in real time.

Once the pay period is closed on the Peoplenet site, Peoplenet will send a user(s) the pay file, which needs to be imported into Avionté through the Import/Export section. A successfully imported Peoplenet pay file will automatically create a Time Entry batch and associate it with the transactions from the file.



Back to Top

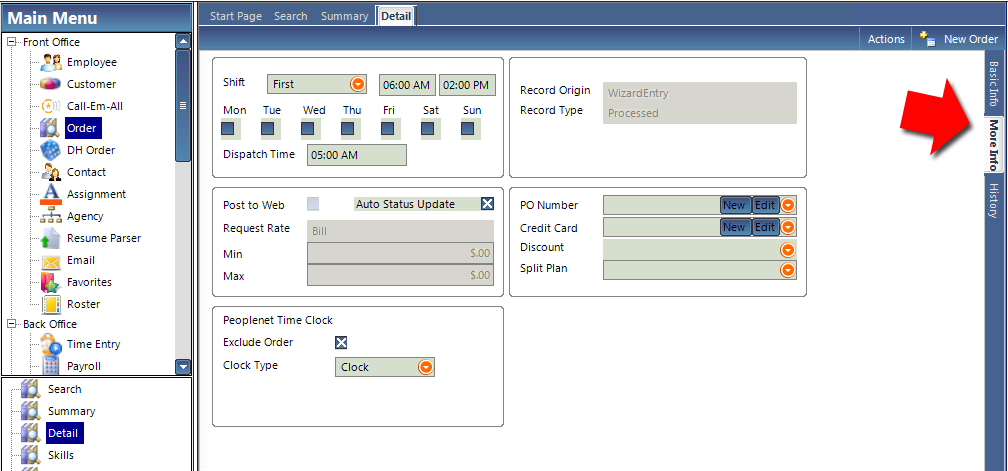

Peoplenet Time Clock Section

The Peoplenet Time Clock section will display an order's Peoplenet settings in Order > Detail > More Info side tab > Peoplenet Time Clock section.



• Note: This section will only appear if the customer is subscribed to Peoplenet. You can manage customer subscriptions in Admin Tools > Peoplenet Time Clocks.
• Click the Exclude Order box if this order's assignments should not be sent to Peoplenet.


• View the clock type this order will be using with the Clock Type section.
• Note: This field is not editable and is populated using the information in the Admin Tools section.



Back to Top



Show Peoplenet Time View

The Peoplenet Time View section displays exported assignments, imported pay files, and errors generated from Peoplenet.

• Display the Peoplenet Time View window by navigating to Back Office > Time Entry > Home tab > Actions > Show Peoplenet Time View.
•



• Note: This option is only available if the user setting txn_main_ShowPeoplenetTimeView is activated.

The upper bar in the window displays a filter and a refresh button. The filter allows a user to only see pay files, error messages, and information from within the selected dates.

• This filter will remain until altered by a user.



Back to Top



Exported - Assignments Tab



The Exported- Assignments tab shows each assignment that is or will be exported to Peoplenet.



Back to Top



Exported- Assignment columns:

Assignment	The Assignment ID.
Last Name	The last name of the employee.
First Name	The first name of the employee.
Client	The client the assignment is for.
Job Description	A short job description.
Start Date	The start date of the assignment.
Date Sent	The date the assignment was exported.
Status Date	The date the status most recently changed.
Status	The most recent export status.



Back to Top



Click the plus sign to expand the file and view the messages associated with each assignment.

Message ID	The Message ID.
Assignment	The Assignment ID.
Last Name	The last name of the employee.
First Name	The first name of the employee.
Status Date	The date of the most recent status change.
Status	The status in regards to the exportation process.
Error Number	The number of errors occurred.
Error Description	The description of the error.



Back to Top

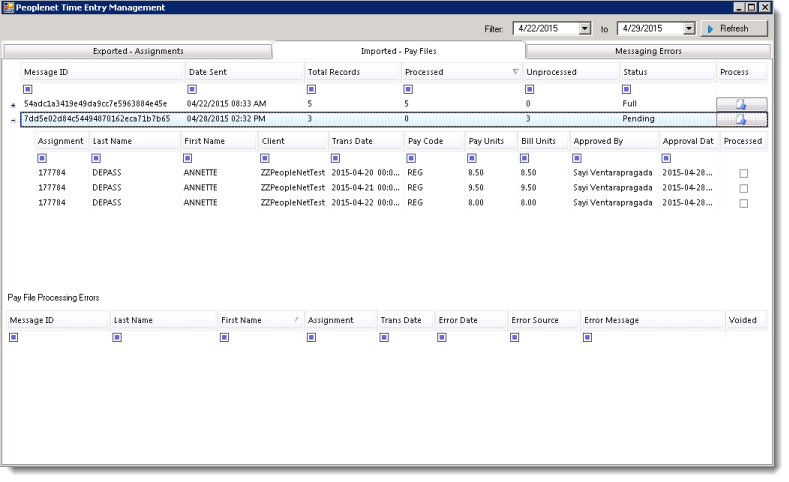

Imported - Pay Files Tab

Note: Most clients do not use this functionality as it is only a feature in the full integration, rather than the more commonly used "hybrid" integration. This functionality is only visible if a customer is using the full integration.



The Imported- Pay Files tab displays all of the pay files for the customers subscribed to Peoplenet. All orders for a single customer, with all departments included, are combined into one pay file for the week.



Back to Top



Imported- Pay Files columns (upper portion):

Message ID	The ID of the message.
Date Sent	The date the message was sent to Peoplenet.
Total Records	The total number of records for the worked week in the pay file.
Processed	The number of records processed in the pay file.
Unprocessed	The number of records unprocessed in the pay file.
Status	The most recent import status.
Process	Click the button to process the files after review.



Click the small plus sign next to the pay file to view the daily punches of the employees assigned to orders under a customer.



Back to Top



Individual Daily Punches columns:

Assignment	The Assignment ID.
Last Name	The last name of the employee.
First Name	The first name of the employee.
Client	The client the assignment is for.
Trans Date	The date of the time punches.
Pay Code	The pay code, indicating if the transaction is regular time, overtime, double time, etc.
Pay Unit	The total pay units for the transaction.
Bill Unit	The total bill units for the transaction.
Approved By	The username of the user who approved the time.
Approval Date	The date of time approval.
Processed	A checkmark is a visual cue indicating the file has been processed. This field is not editable.



Back to Top



Imported- Pay Files columns (lower portion):

Message ID	The ID of the message.
Last Name	The last name of the employee.
First Name	The first name of the employee.
Assignment	The Assignment ID.
Trans Date	The date the transaction occurred.
Error Date	The date the error occurred.
Error Source	The source of the error.
Error Message	Displays any error message associated with the import.
Voided



Back to Top

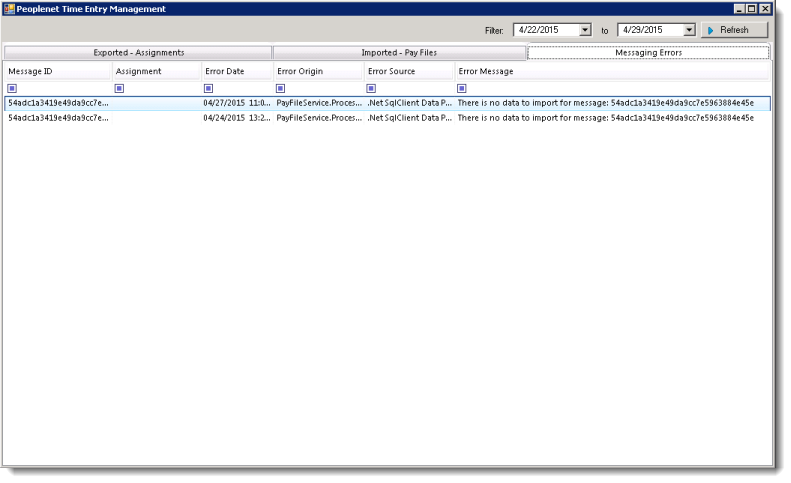

Messaging Errors Tab



The Messaging Errors tab contains the errors that occurred during processing.



Back to Top



Messaging Errors columns:

Message ID	The Message ID of the pay file.
Assignment	The Assignment ID.
Error Date	The date the error occurred.
Error Origin	The origin of the error.
Error Source	The source of the error.
Error Message	The error message.



Back to Top





Process a Pay File from Peoplenet

Note: Most clients do not use this functionality as it is only a feature in the full integration, rather than the more commonly used "hybrid" integration. This functionality is only visible if a customer is using the full integration.



Display the Peoplenet Time View window by navigating to Back Office > Time Entry > Home > Actions > Show Peoplenet Time View.

1. Click on the Imported - Pay Files tab.


2. Select the desired pay file, and expand the view by clicking the plus sign next to the pay file.


3. Review the punches to ensure they are correct.


4. Click the Process button for the selected pay file.


5. Ensure the accounting period in the pop-up window is correct. Click Yes to continue.
• If the accounting period is not correct, click No and return to the home page of Time Entry and choose the correct accounting period. Once the accounting period is correct, follow the steps 1-4 in this section, and click Yes to continue.
6. A pop-up dialogue will display the total number of files successfully processed. Click OK to continue. After the payfile has been processed, a batch will automatically be created in Time Entry.
• Note: Any errors that occur during this process will populate in the lower portion of the window in the Pay File Processing Errors section.
7. To review the processed pay file, navigate to Back Office > Time Entry > Actions > Show Sheet View or Show Card View.


8. Review and verify the transactions are correct. View the daily punches for each employee in CardView.


9. Click Verify Batch. Resolve any errors that occur.


10. Click Close Batch to close the batch.


11. Continue to process Payroll as normal.
